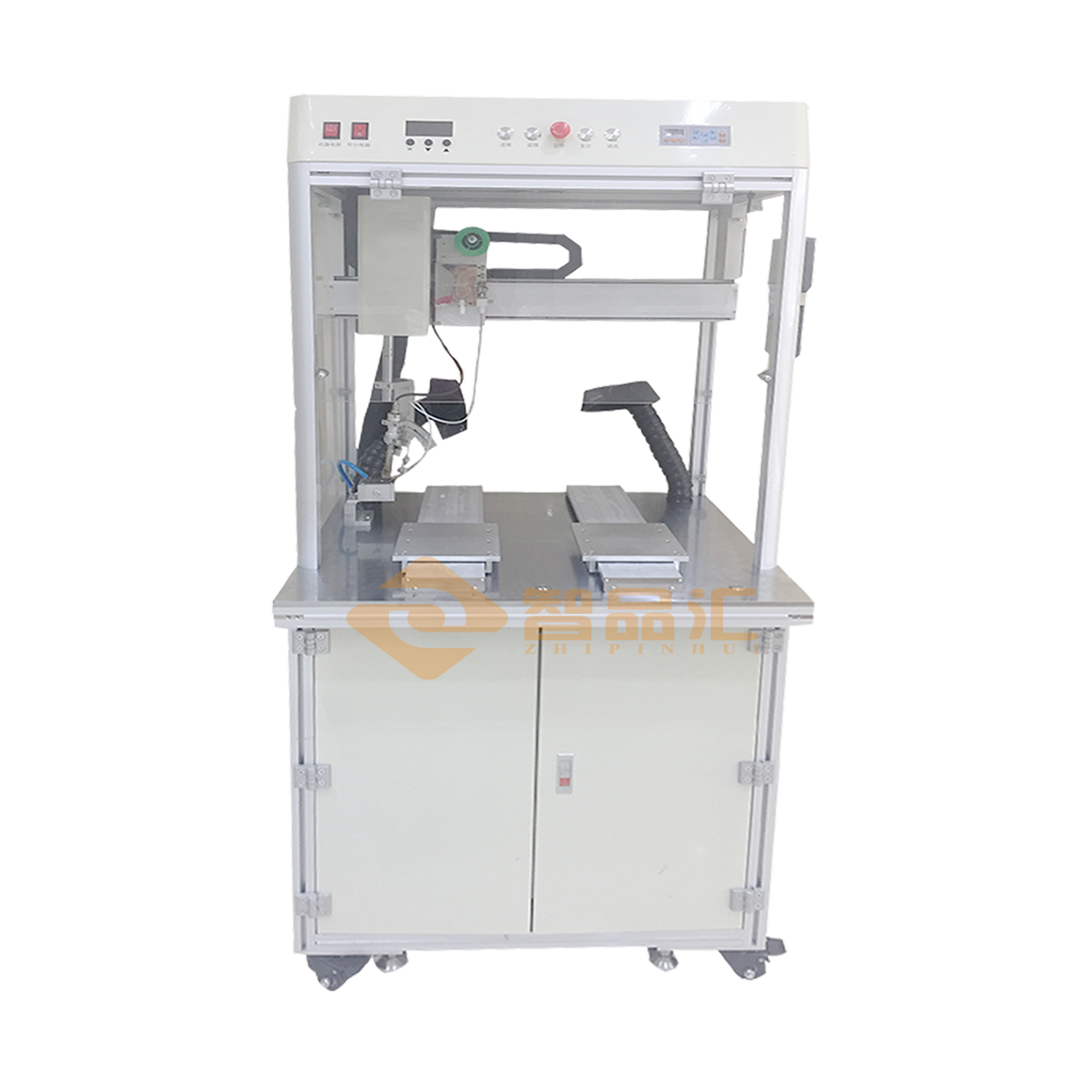

ZH-L5331R立式環保型焊錫機Vertical Environmental Protection Type Soldering Robot
焊錫機器人Soldering Robot | ZH-L5331R 立式精準5軸Vertical precision 5 axis |
加工范圍Processing range X/Y/ /Z/R | 500mm/300mm/300mm/100mm/<300°(可定制Customizable) |
Y軸平臺最大負載Y-axis platform maximum load | 15KG |
X/Y/Z軸移動速度X/Y/Z axis movement speed (mm/sec) | 0-1200 |
XYZ軸重復精度XYZ Axis Repeatability | <±0.02mm |
控制方式Control mode | 工業控制卡Industrial Control Card |
編程方式Programming method | 示教盒Teaching box |
程序記錄容量Program recording capacity | 1000個程序1000 programs |
馬達系統Motor system | 步進級精密馬達Stepping precision motors |
傳動方式Transfer method | 進口同步帶+ HIWIN精密直線導軌Imported synchronous belt + HIWIN precision linear guide rail |
焊臺功率Soldering station power | 大功率150W Heating core, high power 150W |
溫度范圍Temperature range | 0-500° |
自動破錫器Automatic tin-breaker | 送錫精準.百分百破錫. Send tin precisely. 100% tin break. |
適用錫絲Applicable tin wire | 0.6-1.2MM |
專利型真空吸洗機構Patented vacuum suction mechanism | 錫渣回收方便Tin slag is easily recycled |
錫煙處理Tin smoke treatment | 工業抽煙過濾器Industrial smoke filter |
輸入電源Input power | AC220V(內部開關轉換Internal switch conversion) |
外形尺寸Dimensions | L680*W800*H820 |
機器重量Machine weight | 80KG |
功能特點Functional characteristics
1、 單Y、雙Y 根據加載自動上料和下料機構，實現一只流作業。Single Y/double Y can be automatically loaded and unloaded according to the loading mechanism to realize one stream operation.
2、 工業自動破錫機，精準送錫。Industrial automatic tin-breaker, delivery tin accurately.
3、 內設堵錫、卡錫、無錫線檢測功能。It is equipped with tin plug, tin stuck and tin line detection function.
4、 專利型真空清洗烙鐵頭機構,解決傳統吹氣清洗所造成烙鐵頭上的殘錫無法清洗干凈而產生焊接不良或是焊點污穢，對機器清潔或錫渣回收更大提高。The patented vacuum cleaning iron head mechanism solves the problem that the residual tin on the soldering iron head caused by traditional blow cleaning cannot be cleaned, resulting in bad welding or solder joint contamination, and the machine cleaning or tin slag recovery capability is greatly improved.
5、 最新卡式定位或基子定位設計,拆裝容易,而且不會因為更換烙鐵頭而使位置移動。The latest card positioning or base positioning design, easy assembly and disassembly, and will not be due to change the position of the iron head and move.
6、自動焊錫機具有多組記憶程序,可依照不同的產品可分別作記憶。Automatic soldering machine has multiple sets of memory programs, which can be stored separately according to different products.
