ZH-331R臺式焊錫機

非標產品

配送

免費配送

預約

400-816-6687

商品詳情參數概況評價（0）售后保障

立即預約

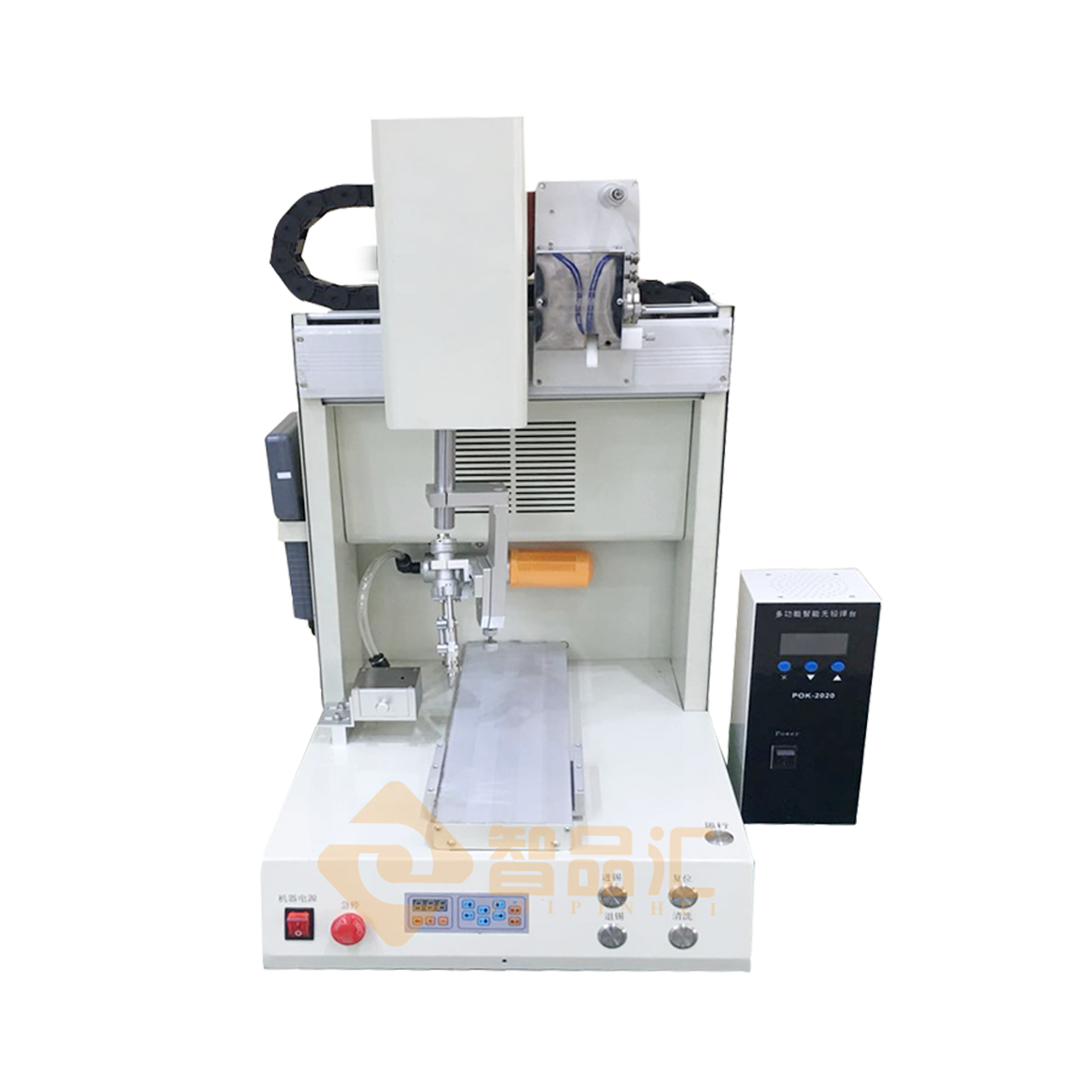

ZH-331R臺式焊錫機Desktop Soldering Robot

焊錫機器人Soldering Robot	ZH-331R 精準4軸Precision 4-axis
加工范圍Processing range X/Y/ /Z/R	300mm/300mm/100mm/<300°(可定制Customizable)
Y軸平臺最大負載Y-axis platform maximum load	15KG
X/Y/Z軸移動速度XY/Z axis movement speed (mm/sec)	0-1200
XYZ軸重復精度XYZ Axis Repeatability	<±0.02mm
控制方式Control mode	工業控制卡Industrial Control Card
編程方式Programming method	示教盒Teaching box
程序記錄容量Program recording capacity	1000組程序1000 programs
馬達系統Motor system	步進級精密馬達Stepping precision motors
傳動方式Transfer method	進口同步帶+ HIWIN精密直線導軌synchronous belt + HIWIN precision linear guide rail
焊臺功率Soldering station power	發熱芯，大功率150W High power 150W
溫度范圍Temperature range	0-500°
自動破錫器Automatic tin-breaker	送錫精準.百分百破錫Send tin precisely. 100% tin break.
適用錫絲Applicable tin wire	0.6-1.2MM
專利型真空吸洗機構Patented vacuum suction mechanism	錫渣回收方便Tin slag is easily recycled
錫煙處理Tin smoke treatment	抽煙系統Extraction System
輸入電源Input power	AC220V(內部開關轉換Internal switch conversion)
工作環境溫度Working temperature	5-40℃
外形尺寸Dimensions	L680W510H820
機器重量Machine weight	60KG

功能特點Functional characteristics

1、單Y/雙Y可以根據加載自動上料和下料機構，實現一只流作業。Single Y/double Y can be automatically loaded and unloaded according to the loading mechanism to realize one stream operation.

2、工業自動破錫機，精準送錫。Industrial automatic tin-breaker, delivery tin accurately.

內設堵錫、卡錫、無錫線檢測功能。It is equipped with tin plug, tin stuck and tin line detection function.

3、

4、專利型真空清洗烙鐵頭機構。Patented vacuum cleaning iron head mechanism .

5焊錫錫煙可以根據通過管道排放或直接過濾，解決焊錫工種職業病。Solder tin smoke can be eliminated through the pipeline or directly filtered to solve occupational diseases in soldering jobs.
6、最新卡式定位或基子定位設計,拆裝容易,而且不會因為更換烙鐵頭而使位置移動。The latest card positioning or base positioning design, easy assembly and disassembly, and will not be due to change the position of the iron head and move.
